TurboSENSOR™ Ultrasonic Scaler

SKU: D560-110
  • Powers 25KHz or 30KHz Parkell or other compatible insert.**
  • Automatically switches frequency to match insert.
  • Autoclavable handpiece sheaths.
  • Foot-controlled Turbo power boost.
  • Expanded low-power “Perio” mode.

**PLEASE NOTE: Parkell scalers are designed to work with Parkell inserts. While other manufacturers claim to produce inserts that are compatible, Parkell cannot guarantee proper performance therewith. Please see our Warranty Policy for additional information.

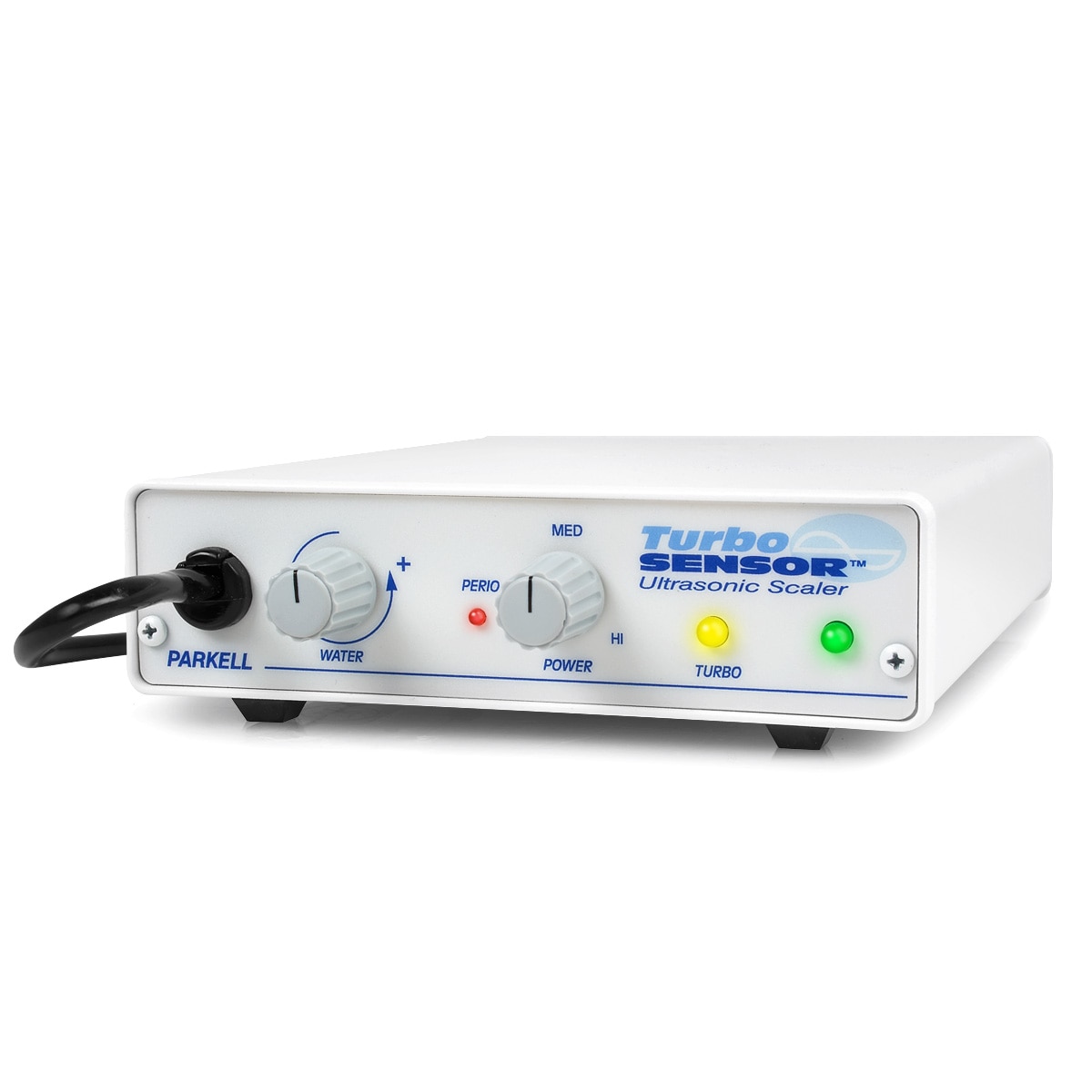

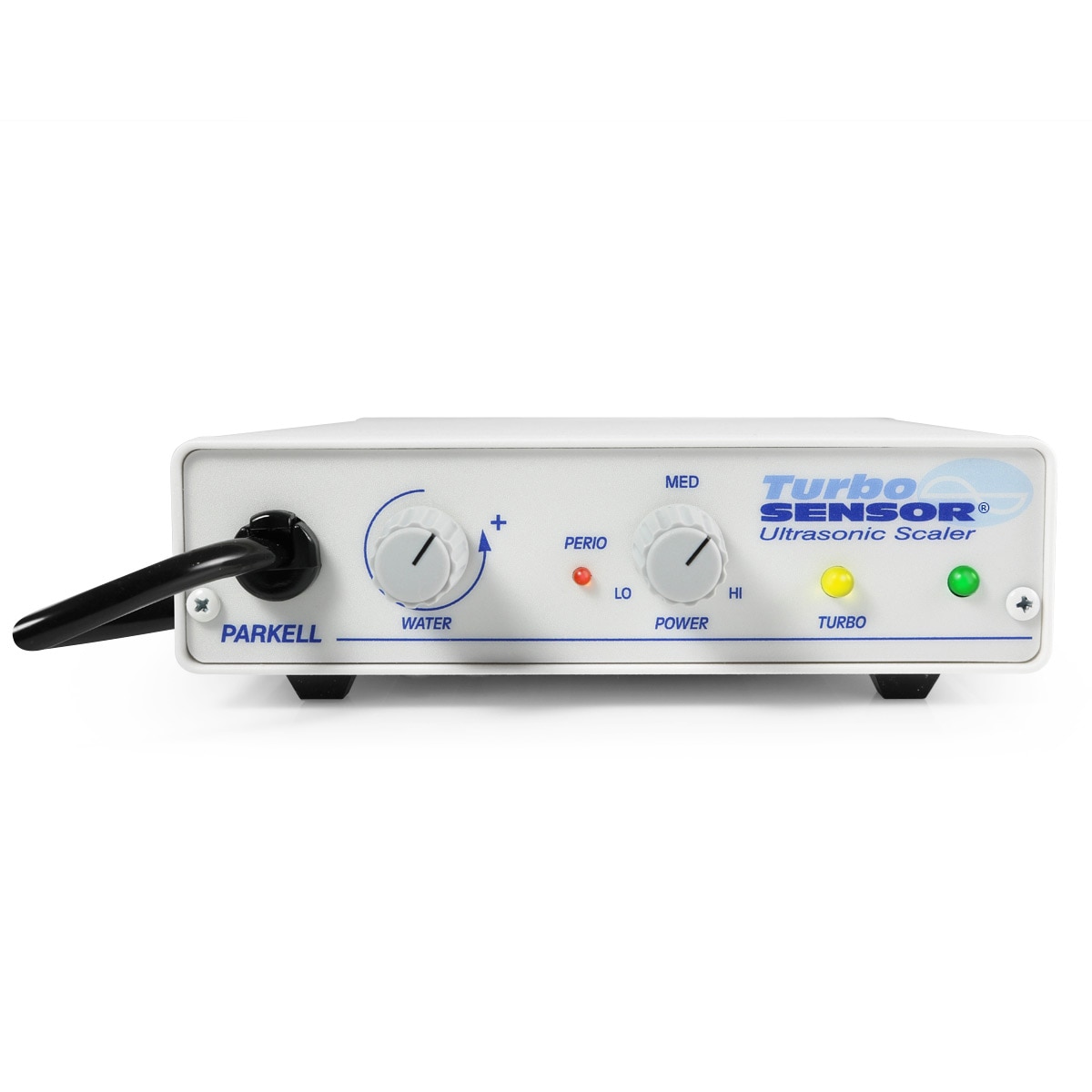

  • Scaler unit

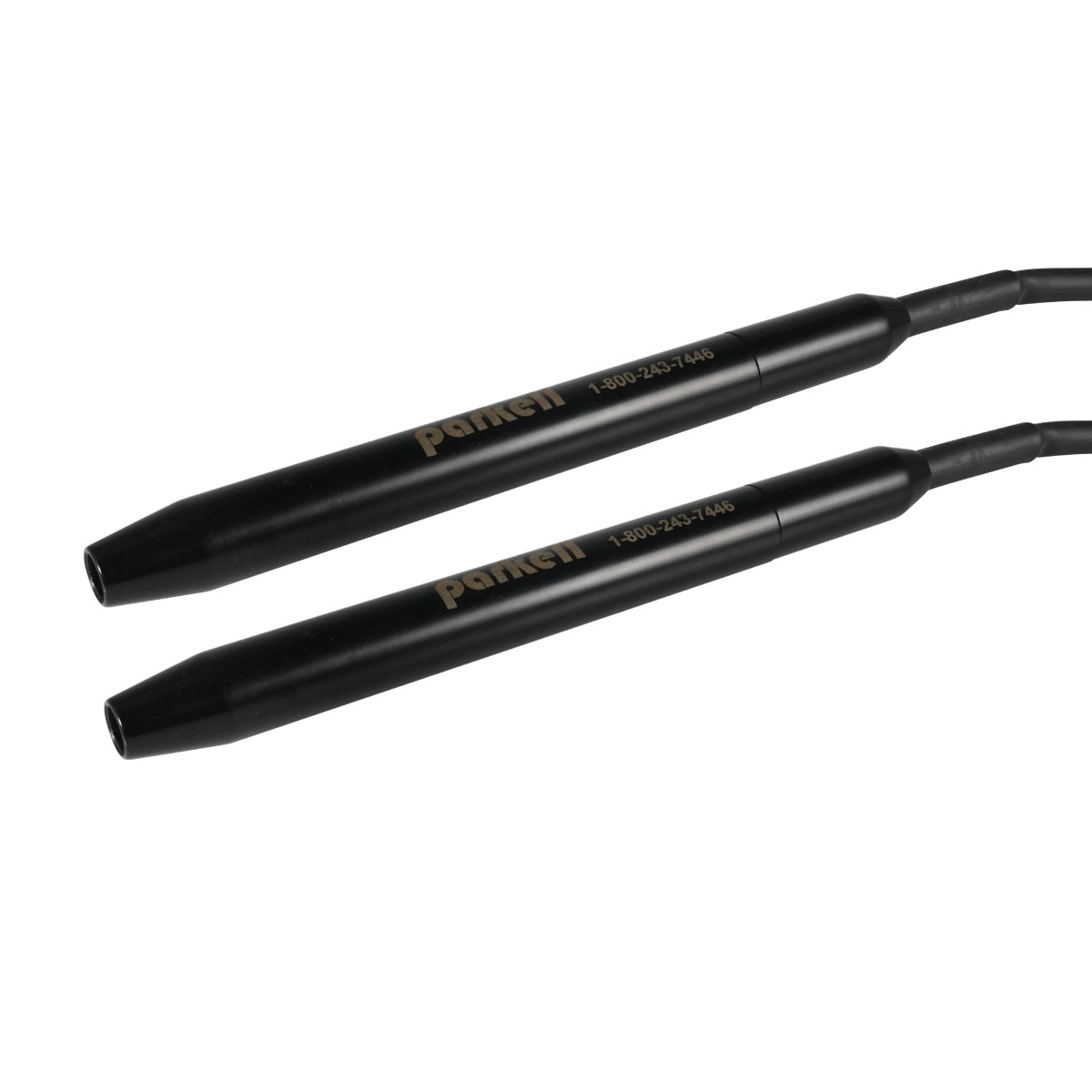

  • Two autoclavable handpiece sheaths

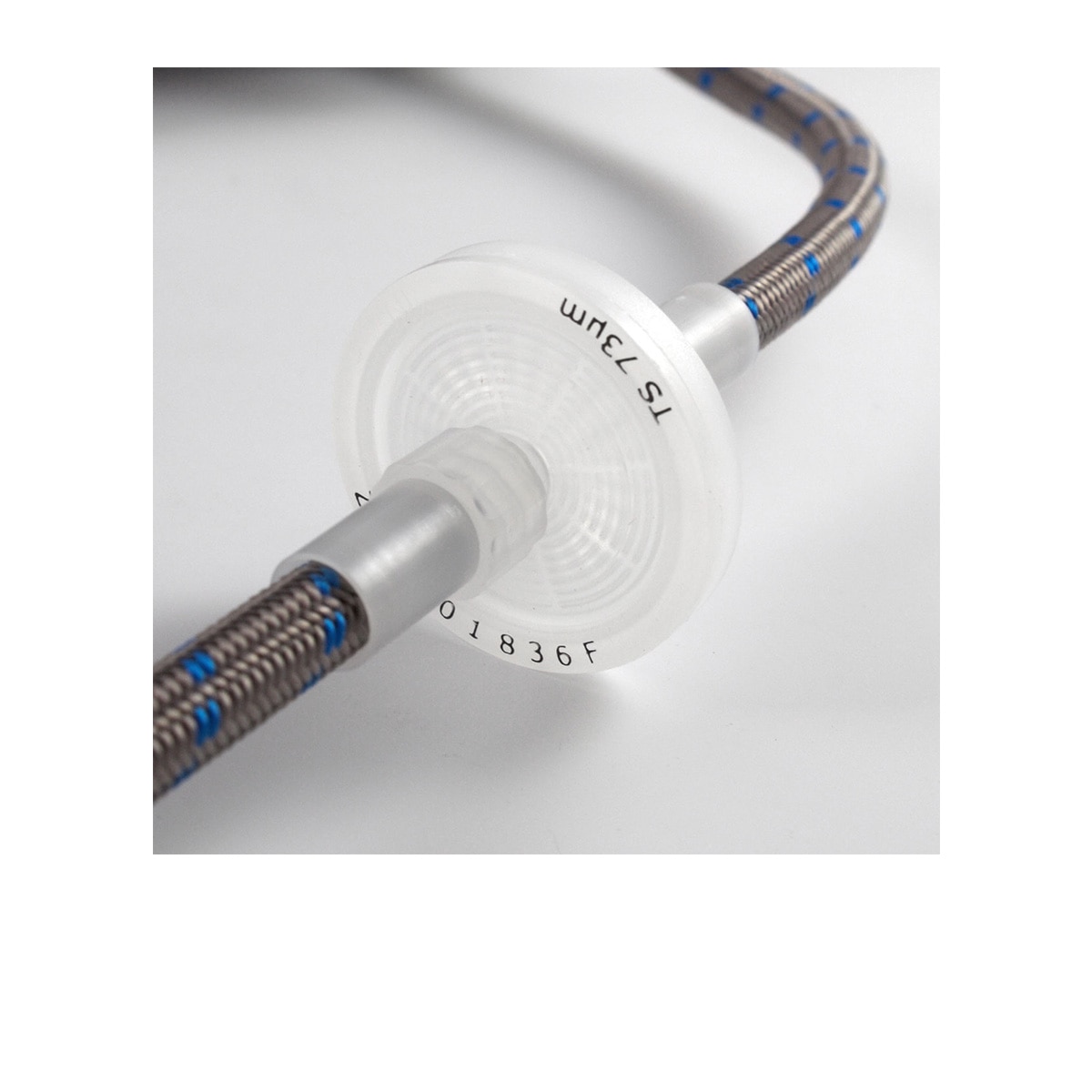

  • In-line water filter with spare disk
  • Quick-disconnect water connection

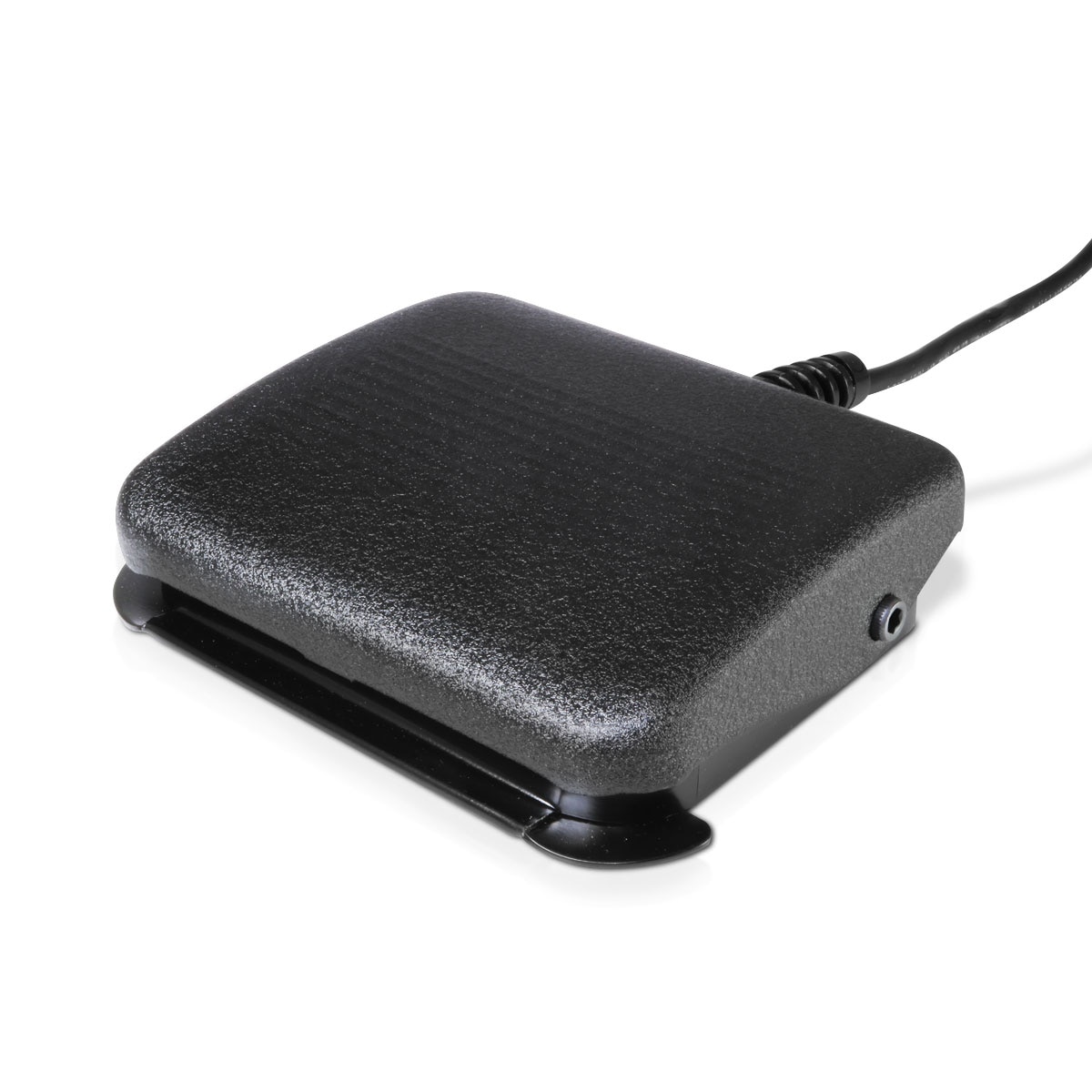

  • Foot controller
THE WORKHORSE – The Hardest Working and Most Practical Ultrasonic Scaler.
Parkell’s popular TurboSENSOR™ Ultrasonic Scaler combines true versatility with intuitive operation. Its smart-circuitry senses whether you’ve inserted a 25KHz or 30KHz tip and automatically switches operating frequency to match the insert in the handpiece.

For patient comfort during routine scaling, the TurboSENSOR offers an expanded low-power debridement mode. An orange LED on the control panel tells you when you are operating in this mode. At the other end of the control panel, the TurboSENSOR provides a higher maximum power setting for extreme calculus blasting. For removal of stubborn calculus, simply increase pressure on the included foot pedal and you’ll get an instant turbo power boost.

  • Size of Unit: 1½”H x 5½”W x 7½”D
  • Weight of Unit: 2.70 lbs (1.22 kg) (43.2 oz)
  • Weight of Transformer: 3.85 lbs (1.75 kg) (61.6 oz)
  • Length of Handpiece Cable: 7’ (215cm)
  • Length of Foot Pedal Cable: 7’ (215cm)
  • Length of Water Hose: 7’6” (230cm)
  • Length of Power Cord: 110V: 12’6” (380cm); 220/230V: 7’6” (230cm)
  • Total Length of Transformer Cable from Wall Outlet to Unit: 12’6” (380cm)
  • Power: 120VAC 50/60 Hz (D560-110), 230VAC 50/60 Hz (D560-230)
  • Protection Against Electric Shock: Class 1, Type B applied part
  • Protection Against Ingress of Liquids: Foot Pedal & Scaler: IPX1 (drip proof); Power Supply: IPX0 (Ordinary)
  • Mode of Operation of Equipment: Intermittent – 10 minutes on, 5 minutes off
  • Operating Conditions: 15–30°C, 20–70% RH (non-condensing)
  • Transport and Storage Conditions: -17º–40°C, 20–70% RH (non-condensing)
  • Certifications: All electrical devices have been certified to: IEC 60601-1, IEC 60601-1-2 and CAN/CSA C22.2 and are TUV listed
